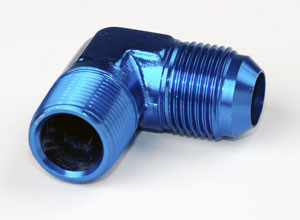

The 3/4 Inch Tube Outer Diameter MS20822 90 Degree Elbow is designed for precise directional changes in piping systems, ensuring secure and reliable connections. It is commonly used in industrial fluid transfer, HVAC systems, and manufacturing processes where durable and efficient pipe routing is essential. This elbow provides a robust solution for maintaining system integrity and optimizing flow in various industrial applications.This component is manufactured to the applicable MS, AN, or NAS specification, ensuring compliance with recognized military and aerospace dimensional, material, and performance requirements. Material certifications, Certificates of Conformance (CoC), and traceability are available where applicable.
hide-Asset:
2934P
hide-Quantity Increment:
1
note-Sold In:
Per Package
note-Units Per Package:
1
spec-Material:
Steel
note-Note:
Our inventory is extensive. The majority of the items listed in our catalog are stocked and available for immediate shipment.
hide-ItemID:
12844
note-Industry Standards/Certification:
MS20822
spec-Dimension S:
1.562"
spec-Dimension V:
1.062"
spec-Tube Outside Diameter:
3/4"
spec-Thread T (Reference):
1.062"-12
spec-Connection Type:
Flared Tube
spec-Dimension Q:
1.625"
spec-Dimension S Tolerance:
-0.000|+0.047"
spec-Dimension Q Tolerance:
-0|+0.047"
spec-Pipe Thread End P (ANPT):
1/2"
spec-Elbow Angle:
90 º
spec-Flared Tube Angle:
37 º
note-Minimum Order Note:
Minimum order is 1. Must order in increments of 1.
