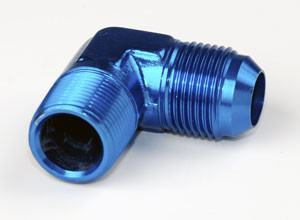

The 90° Elbow - MS20822-8 is a precision-engineered fitting designed for use in piping systems requiring a secure and reliable directional change. It is commonly employed in industrial applications such as fluid transfer, HVAC systems, and process piping to ensure optimal flow and system integrity. Its durable construction and precise design facilitate seamless integration into various industrial setups, enhancing overall system performance.This component is manufactured to the applicable MS, AN, or NAS specification, ensuring compliance with recognized military and aerospace dimensional, material, and performance requirements. Material certifications, Certificates of Conformance (CoC), and traceability are available where applicable.
hide-Asset:
2934P
hide-Quantity Increment:
1
note-Sold In:
Per Package
note-Units Per Package:
1
spec-Material:
Steel
note-Note:
Our inventory is extensive. The majority of the items listed in our catalog are stocked and available for immediate shipment.
hide-ItemID:
56008
note-Industry Standards/Certification:
MS20822
spec-Dimension S:
1.219"
spec-Dimension V:
0.75"
spec-Tube Outside Diameter:
1/2"
spec-Thread T (Reference):
0.750"-16
spec-Connection Type:
Flared Tube
spec-Dimension Q:
1.25"
spec-Dimension S Tolerance:
-0.000|+0.047"
spec-Dimension Q Tolerance:
-0|+0.047"
spec-Pipe Thread End P (ANPT):
3/8"
spec-Elbow Angle:
90 º
spec-Flared Tube Angle:
37 º
spec-Alternate Part Number:
Possible
spec-NSN:
4730-00-231-3013|4730-00-781-1703
spec-NIIN:
00-231-3013|00-781-1703
hide-Part # Unpunctuated:
MS208228
note-Minimum Order Note:
Minimum order is 1. Must order in increments of 1.
note-Inventory Note:
Need additional stock? Call (877) 920-1876 or email
note-California Residents:
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
