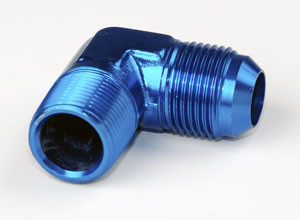

The 90° Elbow - MS20822-4 is a precision-engineered pipe fitting designed to facilitate directional changes in piping systems. It is commonly used in aerospace, hydraulic, and industrial fluid transfer applications to ensure secure and efficient connections. This elbow provides reliable performance in demanding environments where precise alignment and durability are essential.This component is manufactured to the applicable MS, AN, or NAS specification, ensuring compliance with recognized military and aerospace dimensional, material, and performance requirements. Material certifications, Certificates of Conformance (CoC), and traceability are available where applicable.
hide-Asset:
2934P
hide-Quantity Increment:
1
note-Sold In:
Per Package
note-Units Per Package:
1
spec-Material:
Steel
note-Note:
Our inventory is extensive. The majority of the items listed in our catalog are stocked and available for immediate shipment.
hide-ItemID:
55990
note-Industry Standards/Certification:
MS20822
spec-Dimension S:
0.781"
spec-Dimension V:
0.438"
spec-Tube Outside Diameter:
1/4"
spec-Thread T (Reference):
0.437"-20
spec-Connection Type:
Flared Tube
spec-Dimension Q:
0.891"
spec-Dimension S Tolerance:
-0.000|+0.047"
spec-Dimension Q Tolerance:
-0|+0.047"
spec-Pipe Thread End P (ANPT):
1/8"
spec-Elbow Angle:
90 º
spec-Flared Tube Angle:
37 º
spec-Alternate Part Number:
Possible
spec-NSN:
4730-00-231-4009|4730-00-277-2447
spec-NIIN:
00-231-4009|00-277-2447
hide-Part # Unpunctuated:
MS208224
note-Minimum Order Note:
Minimum order is 1. Must order in increments of 1.
