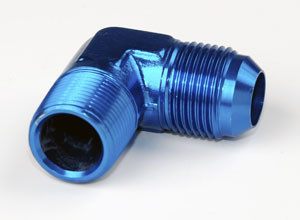

The 3/4 Inch Tube Outer Diameter MS20822 90 Degree Elbow is designed for creating secure, right-angle connections in piping and tubing systems. It is commonly used in industrial applications such as hydraulic, pneumatic, and fluid transfer systems to ensure efficient flow and reliable joint integrity. This elbow provides a durable and precise fit, facilitating seamless installation in various manufacturing and maintenance environments.This component is manufactured to the applicable MS, AN, or NAS specification, ensuring compliance with recognized military and aerospace dimensional, material, and performance requirements. Material certifications, Certificates of Conformance (CoC), and traceability are available where applicable.
hide-Asset:
2934P
hide-Quantity Increment:
1
note-Sold In:
Per Package
note-Units Per Package:
1
spec-Material:
Aluminum
note-Note:
Our inventory is extensive. The majority of the items listed in our catalog are stocked and available for immediate shipment.
hide-ItemID:
12864
note-Industry Standards/Certification:
MS20822
spec-Dimension S:
1.938"
spec-Dimension V:
1.312"
spec-Tube Outside Diameter:
3/4"
spec-Thread T (Reference):
1.062"-12
spec-Connection Type:
Flared Tube
spec-Dimension Q:
1.781"
spec-Dimension S Tolerance:
-0.000|+0.047"
spec-Dimension Q Tolerance:
-0|+0.047"
spec-Pipe Thread End P (ANPT):
1"
spec-Elbow Angle:
90 º
spec-Flared Tube Angle:
37 º
note-Minimum Order Note:
Minimum order is 1. Must order in increments of 1.
