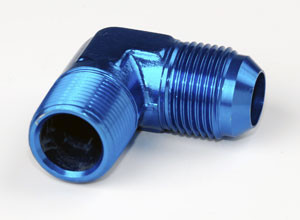

The 90° Elbow MS20822-12 is a precision-engineered fitting designed for seamless pipe and tubing connections in industrial piping systems. It is commonly used in fluid transfer applications across manufacturing, chemical processing, and HVAC industries to ensure reliable directional changes. Its robust construction provides durability and secure sealing in high-pressure environments, supporting efficient system performance.This component is manufactured to the applicable MS, AN, or NAS specification, ensuring compliance with recognized military and aerospace dimensional, material, and performance requirements. Material certifications, Certificates of Conformance (CoC), and traceability are available where applicable.
hide-Asset:
2934P
hide-Quantity Increment:
1
note-Sold In:
Per Package
note-Units Per Package:
1
spec-Material:
Steel
note-Note:
Our inventory is extensive. The majority of the items listed in our catalog are stocked and available for immediate shipment.
hide-ItemID:
56033
note-Industry Standards/Certification:
MS20822
spec-Dimension S:
1.594"
spec-Dimension V:
1.062"
spec-Tube Outside Diameter:
3/4"
spec-Thread T (Reference):
1.062"-12
spec-Connection Type:
Flared Tube
spec-Dimension Q:
1.656"
spec-Dimension S Tolerance:
-0.000|+0.047"
spec-Dimension Q Tolerance:
-0|+0.047"
spec-Pipe Thread End P (ANPT):
3/4"
spec-Elbow Angle:
90 º
spec-Flared Tube Angle:
37 º
spec-Alternate Part Number:
Possible
spec-NSN:
4730-00-231-3017|4730-00-278-3675|4730-00-781-1704
spec-NIIN:
00-231-3017|00-278-3675|00-781-1704
hide-Part # Unpunctuated:
MS2082212
note-Minimum Order Note:
Minimum order is 1. Must order in increments of 1.
