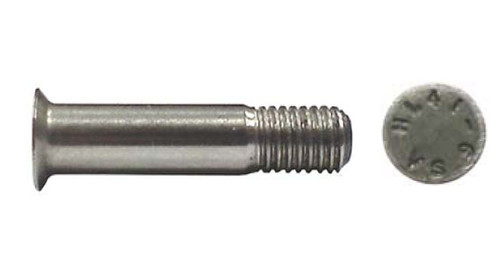

The HL41-6-12 Hi-Lok Shear Head Pin is a precision fastener designed for secure, reliable assembly in aerospace and industrial applications. It is commonly used in structural joints where high-strength, vibration-resistant fastening is required. This shear head pin ensures consistent performance in demanding environments, supporting safety and durability in critical assemblies.
hide-Asset:
1239P
hide-Quantity Increment:
1
note-Units Per Package:
1
spec-Material:
A-286 High Temperature Alloy
note-Note:
Our inventory is extensive. The majority of the items listed in our catalog are stocked and available for immediate shipment.
hide-ItemID:
7507
spec-Thread Size:
#10-32
spec-Head Type:
Flush Shear
spec-Head Angle:
100 º
spec-Minimum Shear Strength:
95000 psi
spec-Maximum Grip:
3/4"
spec-Nominal Diameter:
3/16"
spec-Diameter A:
0.2966|0.3016"
spec-Reference B:
0.325"
spec-Diameter TD:
0.1810|0.1840"
spec-Dimension H:
0.0449|0.047"
spec-Minimum Double Shear Load:
5380 lb
spec-Minimum Tension Load:
2000 lb
spec-Diameter D with Coating or Solid Film Lubricant:
0.1885|0.1895"
spec-Diameter D without Coating or Solid Film Lubricant:
0.1890|0.1895"
spec-Maximum Grip + B Tolerance:
±0.010"
spec-Maximum Grip Tolerance:
±0.005"
spec-Manufacturer:
Hi-Lok
note-Minimum Order Note:
Minimum order is 10. Must order in increments of 1.
