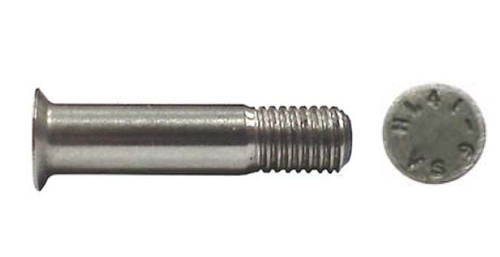

The HL41-4-9 1/8 Inch Nominal Diameter HL41 Hi-Lok Shear Head Pin is a precision fastener designed for securing components in aerospace and industrial applications. It provides reliable, high-strength fastening solutions where controlled shear strength is critical for safety and performance. This shear head pin is commonly used in aircraft assembly, structural joints, and other high-stress environments requiring secure, removable connections.
hide-Asset:
1239P
hide-Quantity Increment:
1
note-Sold In:
Per Package
note-Units Per Package:
1
spec-Material:
A-286 High Temperature Alloy
note-Note:
Our inventory is extensive. The majority of the items listed in our catalog are stocked and available for immediate shipment.
hide-ItemID:
7477
spec-Thread Size:
#6-32
spec-Head Type:
Flush Shear
spec-Head Angle:
100 º
spec-Minimum Shear Strength:
95000 psi
spec-Maximum Grip:
9/16"
spec-Nominal Diameter:
1/8"
spec-Diameter A:
0.2171|0.2219"
spec-Reference B:
0.294"
spec-Diameter TD:
0.1310|0.1335"
spec-Dimension H:
0.0334|0.0354"
spec-Minimum Double Shear Load:
2840 lb
spec-Minimum Tension Load:
950 lb
spec-Diameter D with Coating or Solid Film Lubricant:
0.1365|0.1375"
spec-Diameter D without Coating or Solid Film Lubricant:
0.1370|0.1375"
spec-Maximum Grip + B Tolerance:
±0.010"
spec-Maximum Grip Tolerance:
±0.005"
spec-Manufacturer:
Hi-Lok
note-Minimum Order Note:
Minimum order is 1. Must order in increments of 1.
note-Inventory Note:
Need additional stock? Call (877) 920-1876 or email
note-California Residents:
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
