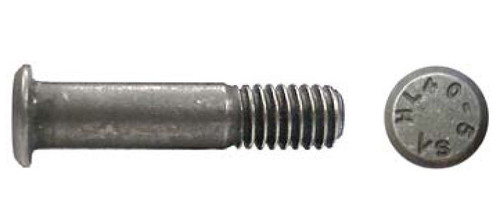

The HL40-5-6 Hi-Lok Shear Head Pin is a precision fastener designed for high-strength, reliable assembly in aerospace and industrial applications. It is used to securely join components where shear strength and vibration resistance are critical, such as in aircraft structures and machinery. This fastener ensures consistent performance and safety in demanding environments, making it ideal for critical fastening needs.
hide-Asset:
1237P
hide-Quantity Increment:
1
note-Sold In:
EA
note-Units Per Package:
1
spec-Material:
A-286 High Temperature Alloy
note-Note:
Our inventory is extensive. The majority of the items listed in our catalog are stocked and available for immediate shipment.
hide-ItemID:
7461
spec-Thread Size:
#8-32
spec-Head Type:
Protruding Shear
spec-Maximum Grip:
3/8"
spec-Nominal Diameter:
5/32"
spec-Diameter A:
0.242|0.262"
spec-Reference B:
0.312"
spec-Diameter TD:
0.1570|0.1595"
spec-Reference G:
0.02"
spec-Dimension H:
0.037|0.047"
spec-Minimum Double Shear Load:
4010 lb
spec-Minimum Tension Load:
1940 lb
spec-Diameter D with Coating or Solid Film Lubricant:
0.1625|0.1635"
spec-Diameter D without Coating or Solid Film Lubricant:
0.1630|0.1635"
spec-Maximum Grip + B Tolerance:
±0.010"
spec-Maximum Grip Tolerance:
±0.005"
spec-Manufacturer:
Hi-Lok
note-Minimum Order Note:
Minimum order is 10. Must order in increments of 1.
