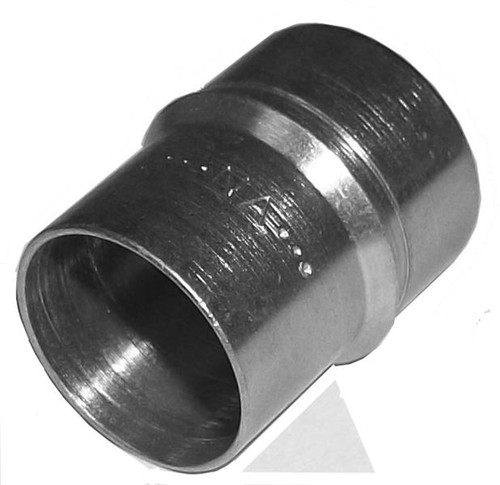

The MS21922-2C sleeve is a specialized component designed for use in aerospace and industrial hydraulic systems to provide reliable sealing and protection. It is commonly employed in applications requiring high-performance, durable sleeves to prevent fluid leaks and contamination. This product ensures system integrity and longevity in demanding operational environments.This component is manufactured to the applicable MS, AN, or NAS specification, ensuring compliance with recognized military and aerospace dimensional, material, and performance requirements. Material certifications, Certificates of Conformance (CoC), and traceability are available where applicable.
hide-Asset:
3011P
hide-Quantity Increment:
1
note-Sold In:
Per Package
note-Units Per Package:
1
spec-Material:
Corrosion Resistant Steel
note-Note:
Our inventory is extensive. The majority of the items listed in our catalog are stocked and available for immediate shipment.
hide-ItemID:
56344
spec-Features:
Flareless
note-Industry Standards/Certification:
MS21922
spec-Dimension G:
0.175"
spec-Dimension H:
0.256"
spec-Dimension A:
0.41"
spec-Dimension D:
0.164"
spec-Dimension A Tolerance:
0.01"
spec-Dimension E:
0.129"
spec-Tube Outside Diameter:
1/8"
spec-Dimension E Tolerance:
-0.000|+0.003"
spec-Dimension G Tolerance:
-0.000|+0.004"
spec-NSN:
4730-00-542-2813
spec-NIIN:
00-542-2813
hide-Part # Unpunctuated:
MS219222C
