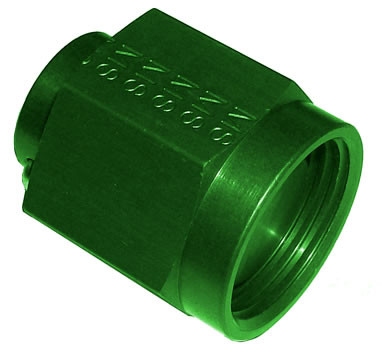

The MS21914-5W Cap is a specialized protective cover designed for use in aerospace and industrial electrical assemblies. It provides secure sealing and insulation for connectors, ensuring reliability in demanding environments such as aircraft, military, and industrial equipment. Its robust construction supports maintenance and operational safety by preventing contamination and electrical contact issues.This component is manufactured to the applicable MS, AN, or NAS specification, ensuring compliance with recognized military and aerospace dimensional, material, and performance requirements. Material certifications, Certificates of Conformance (CoC), and traceability are available where applicable.
hide-Asset:
3003P
hide-Quantity Increment:
1
note-Sold In:
Per Package
note-Units Per Package:
1
spec-Material:
Aluminum 7075
note-Note:
Our inventory is extensive. The majority of the items listed in our catalog are stocked and available for immediate shipment.
hide-ItemID:
56179
note-Industry Standards/Certification:
MIL-S-8879|MS21914
spec-Reference B:
0.625"
spec-Dimension H:
0.7"
spec-Diameter C:
0.434"
spec-Dimension A:
0.845"
spec-Dimension A Tolerance:
0.01"
spec-Tube Outside Diameter:
5/16"
spec-Thread T (MIL-S-8879):
0.5000"-20
spec-Diameter C Tolerance:
0.005"
spec-Dimension H Tolerance:
0.01"
spec-Reference L:
0.977"
spec-Alternate Part Number:
MS21914-5D
spec-NSN:
4730-01-186-4740
spec-NIIN:
01-186-4740
hide-Part # Unpunctuated:
MS219145W
note-Minimum Order Note:
Minimum order is 1. Must order in increments of 1.
