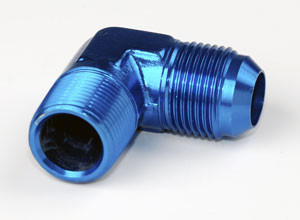

The 90° Elbow - MS20822-6-2J is a precision-engineered fitting designed for use in fluid and gas piping systems. It provides a reliable connection for changing pipe direction in industrial applications such as manufacturing, chemical processing, and HVAC systems. Its robust construction ensures durability and secure performance in demanding environments.This component is manufactured to the applicable MS, AN, or NAS specification, ensuring compliance with recognized military and aerospace dimensional, material, and performance requirements. Material certifications, Certificates of Conformance (CoC), and traceability are available where applicable.
hide-Asset:
2934P
hide-Quantity Increment:
1
note-Sold In:
Per Package
note-Units Per Package:
1
spec-Material:
Corrosion Resistant Steel
note-Note:
Our inventory is extensive. The majority of the items listed in our catalog are stocked and available for immediate shipment.
hide-ItemID:
55999
note-Industry Standards/Certification:
MS20822
spec-Dimension S:
0.875"
spec-Dimension V:
0.562"
spec-Tube Outside Diameter:
3/8"
spec-Thread T (Reference):
0.562"-18
spec-Connection Type:
Flared Tube
spec-Dimension Q:
1.031"
spec-Dimension S Tolerance:
-0.000|+0.047"
spec-Dimension Q Tolerance:
-0|+0.047"
spec-Pipe Thread End P (ANPT):
1/8"
spec-Elbow Angle:
90 º
spec-Flared Tube Angle:
37 º
spec-Alternate Part Number:
AN822-6-2J
spec-NSN:
4730-00-933-0621
spec-NIIN:
00-933-0621
hide-Part # Unpunctuated:
MS2082262J
note-Minimum Order Note:
Minimum order is 1. Must order in increments of 1.
