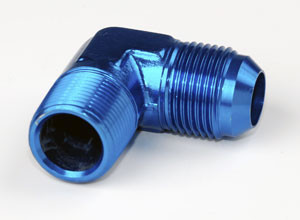

The 5/8 Inch Tube Outer Diameter MS20822 90 Degree Elbow is designed for secure and efficient pipe and tubing connections in various industrial systems. It is commonly used in hydraulic, pneumatic, and fluid transfer applications to facilitate directional changes in piping layouts. This elbow ensures reliable performance in manufacturing, construction, and maintenance environments where durable and precise fittings are essential.This component is manufactured to the applicable MS, AN, or NAS specification, ensuring compliance with recognized military and aerospace dimensional, material, and performance requirements. Material certifications, Certificates of Conformance (CoC), and traceability are available where applicable.
hide-Asset:
2934P
hide-Quantity Increment:
1
note-Sold In:
Per Package
note-Units Per Package:
1
spec-Material:
Corrosion Resistant Steel
note-Note:
Our inventory is extensive. The majority of the items listed in our catalog are stocked and available for immediate shipment.
hide-ItemID:
12878
note-Industry Standards/Certification:
MS20822
spec-Dimension S:
1.469"
spec-Dimension V:
0.875"
spec-Tube Outside Diameter:
5/8"
spec-Thread T (Reference):
0.875"-14
spec-Connection Type:
Flared Tube
spec-Dimension Q:
1.453"
spec-Dimension S Tolerance:
-0.000|+0.047"
spec-Dimension Q Tolerance:
-0|+0.047"
spec-Pipe Thread End P (ANPT):
1/2"
spec-Elbow Angle:
90 º
spec-Flared Tube Angle:
37 º
spec-Alternate Part Number:
AN822-10J
note-Minimum Order Note:
Minimum order is 1. Must order in increments of 1.
note-Inventory Note:
Need additional stock? Call (877) 920-1876 or email
