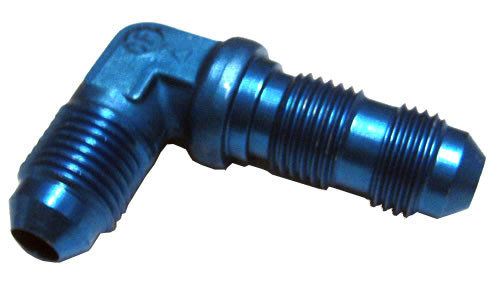

The 90° Elbow AN833-8D is a precision-engineered fitting designed for seamless connection of piping systems in industrial applications. It is commonly used in hydraulic, pneumatic, and fluid transfer systems to facilitate directional changes while maintaining system integrity. Its robust construction ensures reliable performance in demanding environments such as manufacturing plants, automotive, and aerospace industries.This component is manufactured to the applicable MS, AN, or NAS specification, ensuring compliance with recognized military and aerospace dimensional, material, and performance requirements. Material certifications, Certificates of Conformance (CoC), and traceability are available where applicable.
hide-Asset:
2649P
hide-Quantity Increment:
1
note-Sold In:
Per Package
note-Units Per Package:
1
spec-Material:
Aluminum
note-Note:
Our inventory is extensive. The majority of the items listed in our catalog are stocked and available for immediate shipment.
hide-ItemID:
55609
note-Applications:
Bulkhead Universal
note-Industry Standards/Certification:
AN833
spec-Dimension M:
2-3/32"
spec-Angle:
90 º
spec-Tube Outside Diameter:
1/2"
spec-Thread T (Reference):
3/4"-16
spec-Connection Type:
Flared Tube
spec-Dimension M Tolerance:
+3/64|-0"
spec-Dimension Q:
1-11/32"
spec-Dimension Q Tolerance:
-0|+3/64"
spec-Alternate Part Number:
Possible
spec-NSN:
4730-00-184-8322|4730-00-197-2917
spec-NIIN:
00-184-8322|00-197-2917
hide-Part # Unpunctuated:
AN8338D
note-Minimum Order Note:
Minimum order is 1. Must order in increments of 1.
