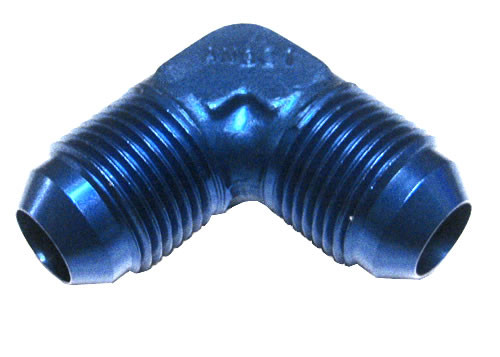

The AN821-6J 90° Elbow is designed for use in fluid transfer systems requiring precise directional changes. It is commonly employed in hydraulic, pneumatic, and fuel line applications across industrial and automotive sectors. Its robust construction ensures reliable performance in demanding environments, facilitating secure and efficient piping configurations.This component is manufactured to the applicable MS, AN, or NAS specification, ensuring compliance with recognized military and aerospace dimensional, material, and performance requirements. Material certifications, Certificates of Conformance (CoC), and traceability are available where applicable.
hide-Asset:
2644P
hide-Quantity Increment:
1
note-Sold In:
Per Package
note-Units Per Package:
1
spec-Material:
Corrosion Resistant Steel
note-Note:
Our inventory is extensive. The majority of the items listed in our catalog are stocked and available for immediate shipment.
hide-ItemID:
55548
note-Industry Standards/Certification:
AN821
spec-Dimension V:
9/16"
spec-Thread T:
9/16"-18
spec-Tube Outside Diameter:
3/8"
spec-Connection Type:
Flared Tube
spec-Dimension Q:
1-1/16"
spec-Elbow Angle:
90 º
spec-Flared Tube Angle:
37 º
spec-NSN:
4730-00-627-6094
spec-NIIN:
00-627-6094
hide-Part # Unpunctuated:
AN8216J
note-Minimum Order Note:
Minimum order is 1. Must order in increments of 1.
note-Inventory Note:
Need additional stock? Call (877) 920-1876 or email
note-California Residents:
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
