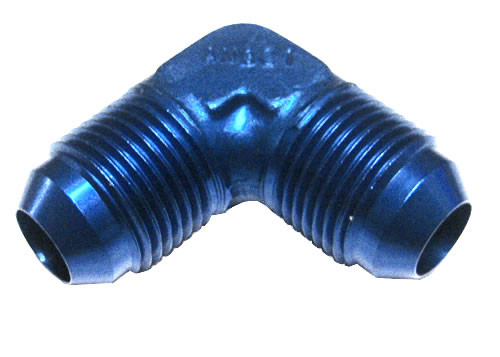

The AN821-5D 90° Elbow is designed for seamless connection of piping systems, enabling efficient directional changes in fluid or gas flow. It is commonly used in industrial applications such as hydraulic systems, HVAC, and manufacturing processes where reliable and durable pipe routing is essential. This elbow ensures secure, leak-proof joints, contributing to the overall integrity and performance of complex piping networks.This component is manufactured to the applicable MS, AN, or NAS specification, ensuring compliance with recognized military and aerospace dimensional, material, and performance requirements. Material certifications, Certificates of Conformance (CoC), and traceability are available where applicable.
hide-Asset:
2644P
hide-Quantity Increment:
1
note-Sold In:
Per Package
note-Units Per Package:
1
spec-Material:
Aluminum
note-Note:
Our inventory is extensive. The majority of the items listed in our catalog are stocked and available for immediate shipment.
hide-ItemID:
55542
note-Industry Standards/Certification:
AN821
spec-Dimension V:
1/2"
spec-Thread T:
1/4"-20
spec-Tube Outside Diameter:
5/16"
spec-Connection Type:
Flared Tube
spec-Dimension Q:
61/64"
spec-Elbow Angle:
90 º
spec-Flared Tube Angle:
37 º
spec-Alternate Part Number:
Possible
spec-NSN:
4730-00-194-1042
spec-NIIN:
00-194-1042
hide-Part # Unpunctuated:
AN8215D
note-Minimum Order Note:
Minimum order is 1. Must order in increments of 1.
note-Inventory Note:
Need additional stock? Call (877) 920-1876 or email
