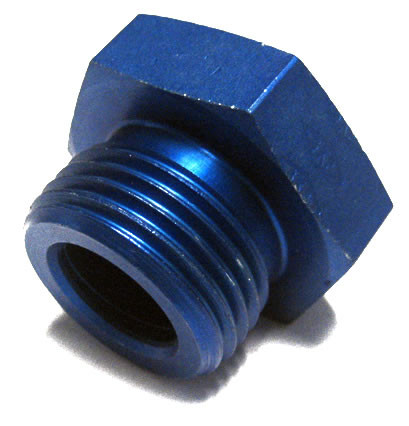

The Bleeder Plug AN814-6L is a specialized component designed for use in hydraulic and pneumatic systems to release trapped air and prevent pressure build-up. It is commonly employed in aerospace, automotive, and industrial machinery applications to ensure optimal system performance and safety. Its robust construction and precise threading facilitate secure installation and reliable operation in demanding environments.This component is manufactured to the applicable MS, AN, or NAS specification, ensuring compliance with recognized military and aerospace dimensional, material, and performance requirements. Material certifications, Certificates of Conformance (CoC), and traceability are available where applicable.
hide-Asset:
2635P
hide-Quantity Increment:
1
note-Sold In:
Per Package
note-Units Per Package:
1
note-Note:
Our inventory is extensive. The majority of the items listed in our catalog are stocked and available for immediate shipment.
hide-ItemID:
55436
spec-Features:
Lockwire Holes|Screw Thread
note-Industry Standards/Certification:
AN814
spec-Dimension L:
9/16"
spec-Diameter B:
15/32"
spec-Dimension D:
23/32"
spec-Dimension E:
0.813"
spec-Tube Outside Diameter:
3/8"
spec-Thread Size (Reference):
9/16"-18
spec-Dimension E Tolerance:
0.004"
spec-Diameter F:
0.482"
spec-Dimension K:
27/64"
spec-Chamfer Angle:
45 º
spec-Diameter F Tolerance:
-0.003|+0.002"
spec-Alternate Part Number:
AS5169-06L
spec-NSN:
5365-00-273-6516
spec-NIIN:
00-273-6516
hide-Part # Unpunctuated:
AN8146L
note-Minimum Order Note:
Minimum order is 1. Must order in increments of 1.
