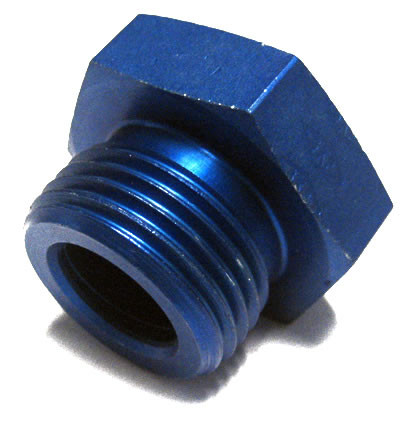

The Bleeder Plug AN814-12D is a specialized component designed for pressure relief and fluid venting in various industrial systems. It is commonly used in hydraulic and pneumatic applications to ensure safe operation and prevent over-pressurization. Its reliable performance makes it essential for maintenance and safety protocols in manufacturing, aerospace, and automotive industries.This component is manufactured to the applicable MS, AN, or NAS specification, ensuring compliance with recognized military and aerospace dimensional, material, and performance requirements. Material certifications, Certificates of Conformance (CoC), and traceability are available where applicable.
hide-Asset:
2635P
hide-Quantity Increment:
1
note-Sold In:
EA
note-Units Per Package:
1
spec-Material:
Aluminum
note-Note:
Our inventory is extensive. The majority of the items listed in our catalog are stocked and available for immediate shipment.
hide-ItemID:
55420
spec-Features:
Screw Thread
note-Industry Standards/Certification:
AN814
spec-Dimension L:
1-1/8"
spec-Diameter B:
15/16"
spec-Dimension D:
1"
spec-Dimension E:
1.375"
spec-Tube Outside Diameter:
3/4"
spec-Thread Size (Reference):
1-1/16-12
spec-Dimension E Tolerance:
0.005"
spec-Diameter F:
0.945"
spec-Dimension K:
19/32"
spec-Chamfer Angle:
45 º
spec-Diameter F Tolerance:
-0.003|+0.002"
spec-Alternate Part Number:
AS5169D12
spec-NSN:
5365-00-278-8806
spec-NIIN:
00-278-8806
hide-Part # Unpunctuated:
AN81412D
note-Minimum Order Note:
Minimum order is 1. Must order in increments of 1.
